A common misunderstand is that creating a Certificate Signing Request (CSR) can only be performed using tools like Internet Information Service (IIS) or the Exchange Admin Center console.
On any Windows computer, you can use the Certificates MMC snap-in to create custom certificate signing requests, including wildcard and multi-SAN certificates for web server authentication.
How do make a custom certificate signing request
First open the Certificates MMC snap-in:
- Log on to any Windows computer, with an account that is a member of the local Administrators group.
- Click Start.
- In the Search programs and files box, type mmc.exe, and press ENTER.
- On the File menu, click Add/Remove Snap-in or use the shortcut Ctrl+M.
- In the list of available snap-ins, click Certificates, and then click Add.
- Click Computer account, and click Next.
- Click Local computer, and click Finish.
- Click OK.
- In the console tree, double-click Certificates (Local Computer), and then double-click Personal.
After you have added the Certificates snap-in for your local computer store, you can create a custom certificate request :

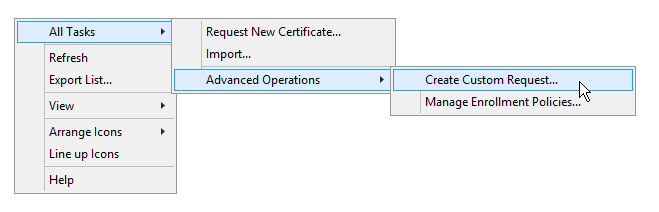

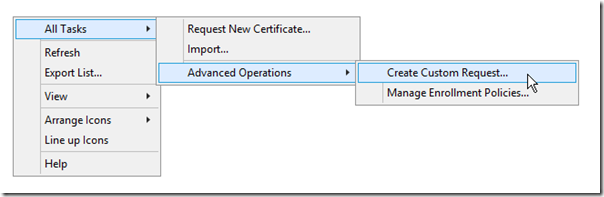

Right-click Personal, point to All Tasks, select Advanced Operations and click Create Custom Request
The Certificate Enrollment wizard now start.

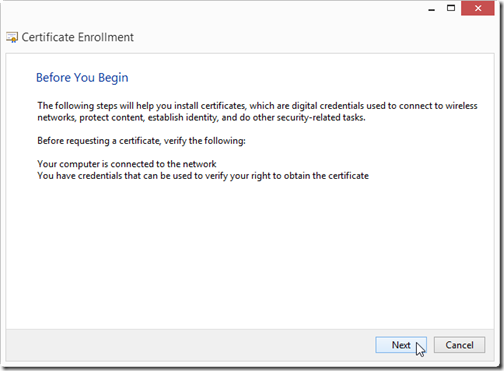

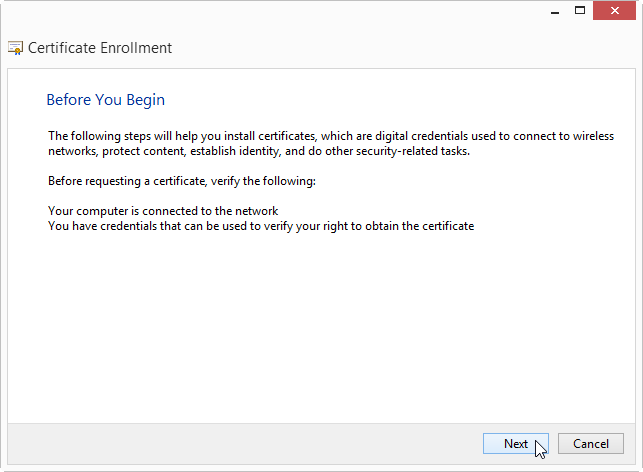

On Before You Begin page click Next

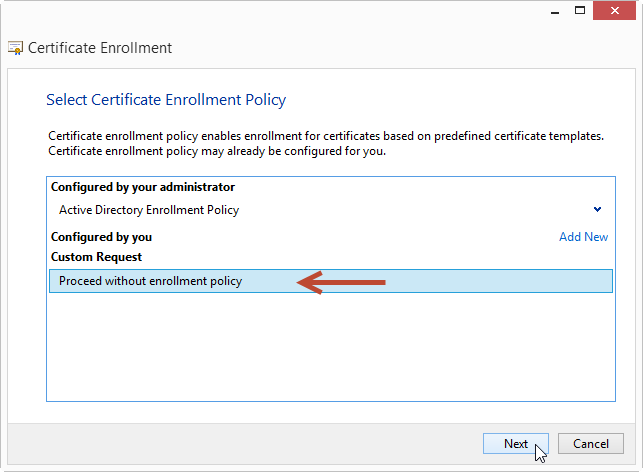

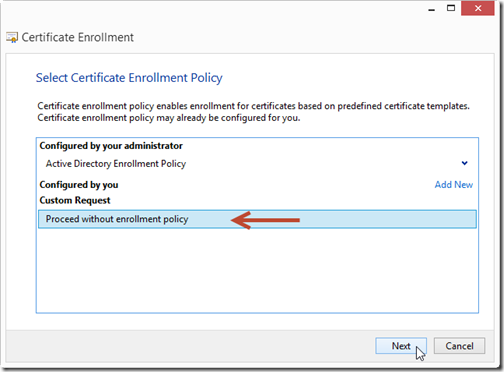

On the Select Certificate Enrollment Policy select Custom Request, (Proceed without enrollment policy) and click Next.

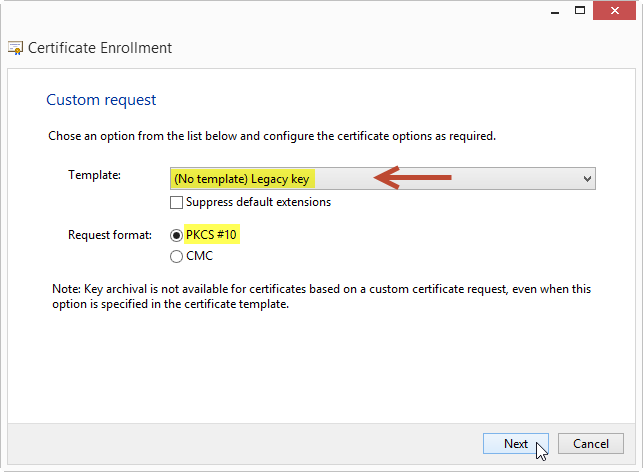

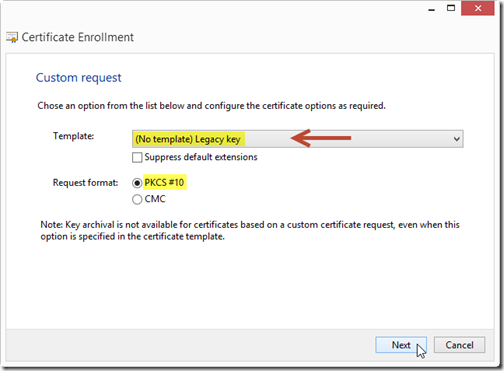

On Custom Request page under the Template options select (No template) Legacy key and select the PKCS #10 request format option:
NOTE:
A range of systems and services does not support CNG based certificates, but require certificates to be based on a legacy CSP.
Examples:
ADFS:
TMG:
Forefront TMG does not support the use of certificates created using CNG (Certificate New Generation) based templates for Web listeners or as client certificate authentication in Web publishing or Web chaining rules.
Microsoft Support statement on Forefront Threat Management Gateway (TMG):
https://technet.microsoft.com/en-us/library/ee796231.aspx#dfg9o9i8uuy6tre

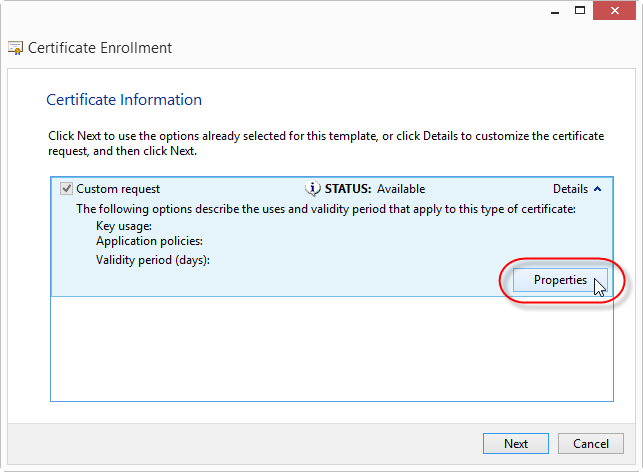

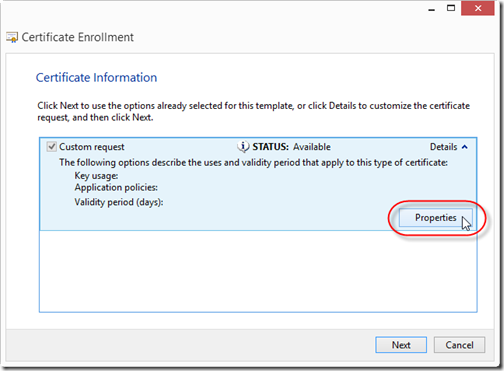

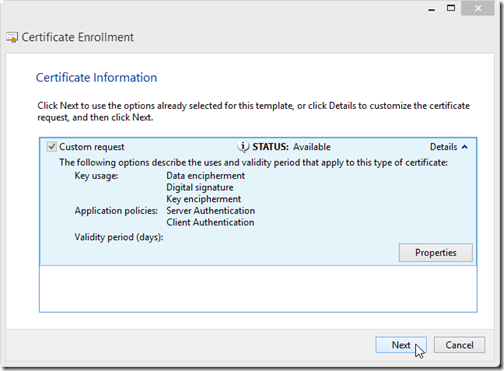

On Certificate Information click Details and click Properties :

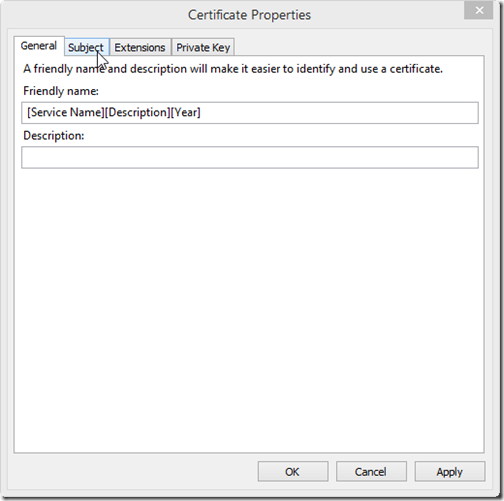

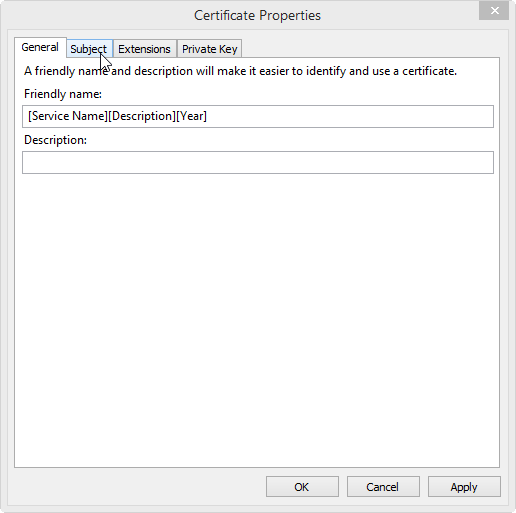

Enter the Friendly name for the certificate and select the Subject tab

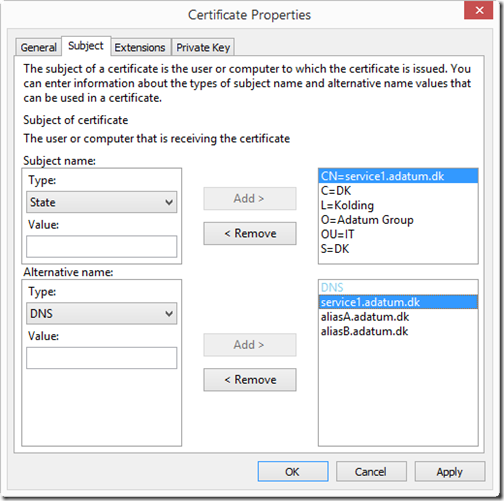

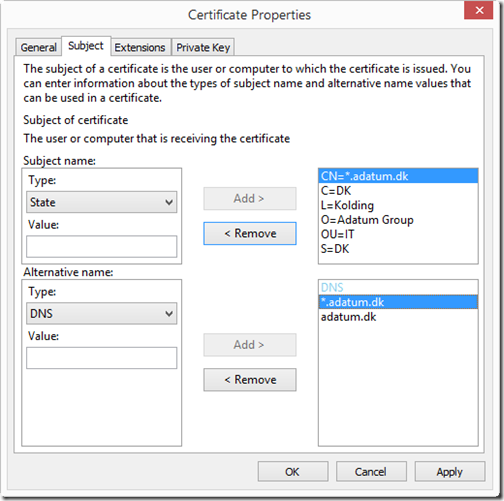

On Subject tab add the relevant Subject names and Alternative names for the certificate using the Common name and the DNS types.
Most Public CAs require additional information in the certificate request, like Country, Locality, Organization, Organization Unit and State:

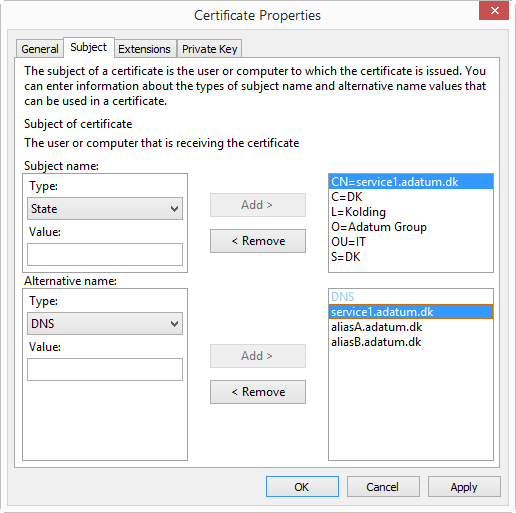

Standard SAN certificate:

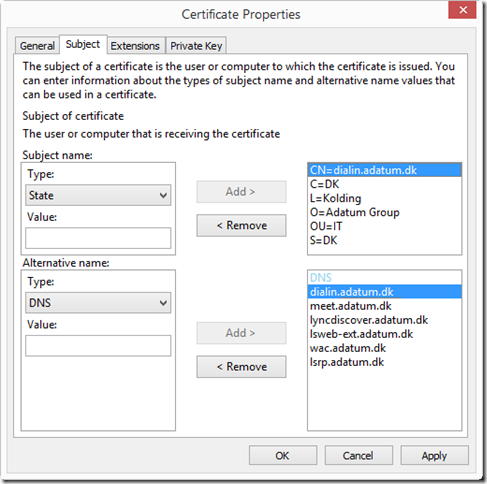

Unified Messaging certificate:

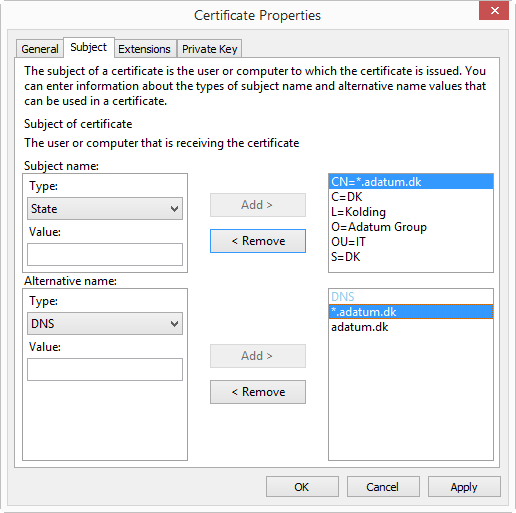

Wildcard certificate:

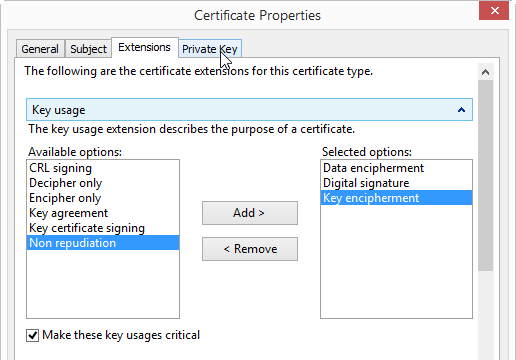

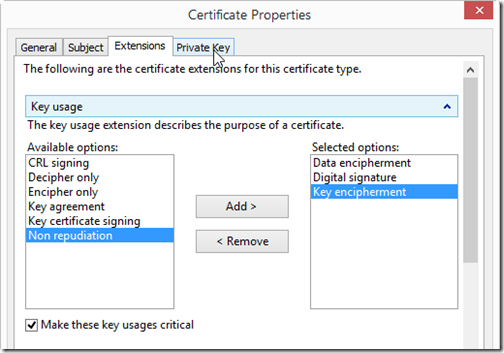

On the Extensions tab:
Select Key Usage and add Data encipherment, Digital signature, Key encipherment

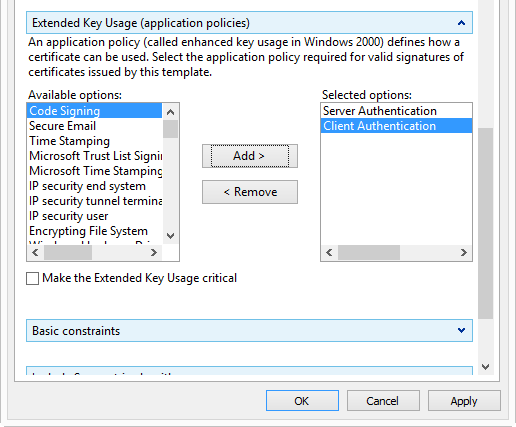

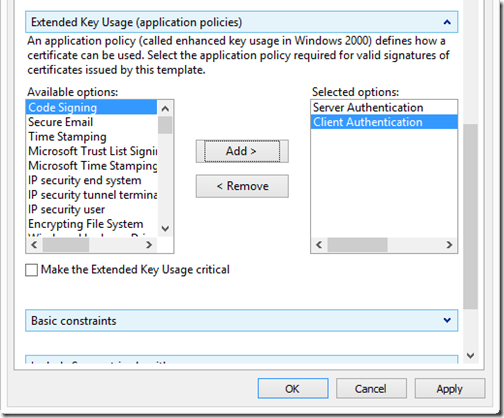

Select Extended Key Usage (application policies) and add Server Authentication and Client Authentication

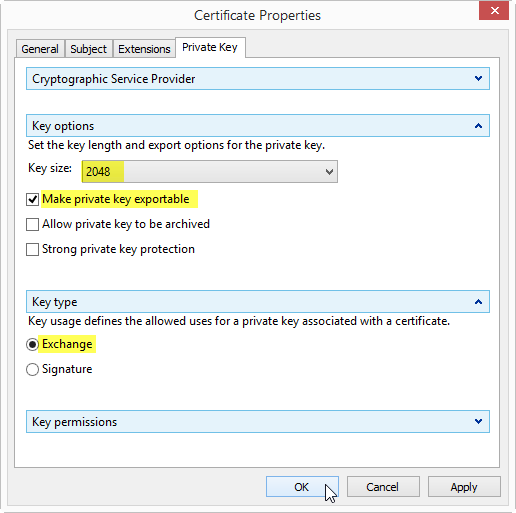

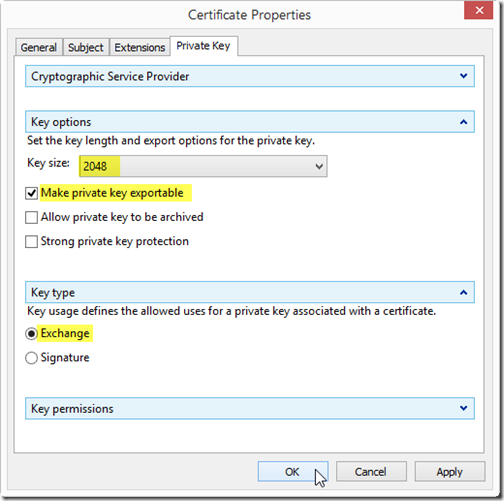

On Private Key tab:
Select Key options and set Key size to 2048 (or higher) and enable the Make private key exportable option.
If the Key type option is available, set this to Exchange
Click Apply
NOTE
If you at this point switch to another tab, without first pressing Apply, the Key size value will be reverted to the default (1024) !

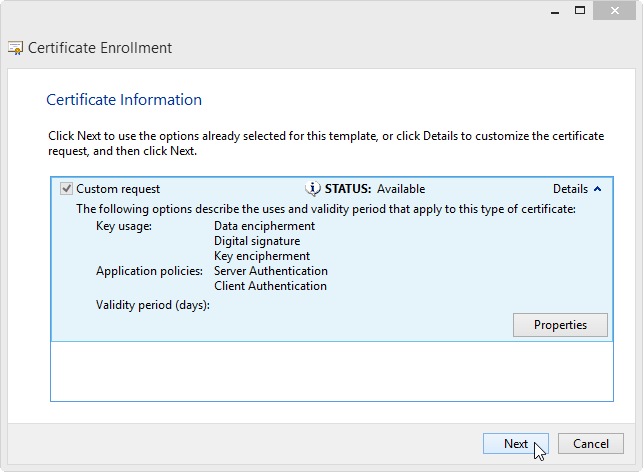

Click OK to go back to wizard page and click Next:

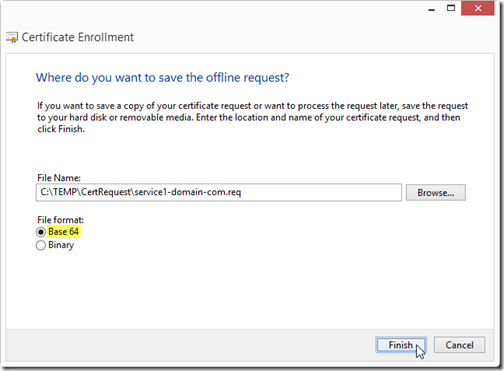

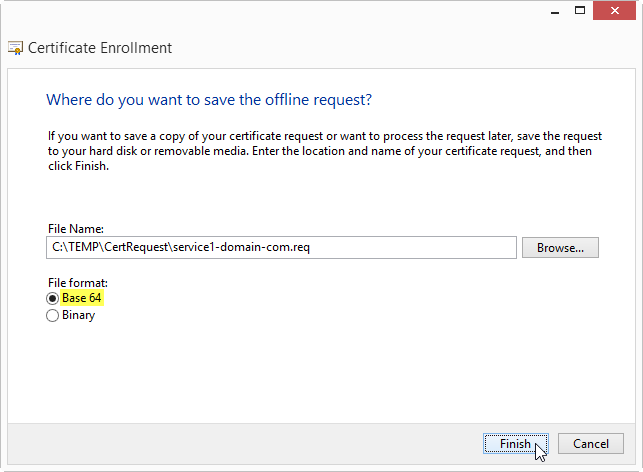

Enter the full path to save the request file, set the File format to Base 64, and click Finish.
After finishing the wizard, you will have a CSR in BASE 64 format which you can forward to an external or internal certificate authority for signing.
Note
The private key is not included in the CSR, and there is no risk of compromising the private key while transporting the request to an external Certificate Authority (CA).
The CA will produce a signed version of the public key and payload, which you can import on the originating computers local certificate store.
After importing the signed public key, the private key and the imported public key must automatically merge and create a complete, working certificate with an associated private key, ready for deployment on your web site or service.
